Agitating Hot Tanks

Copyright © 2011 “AXE Equipment”. All rights reserved.

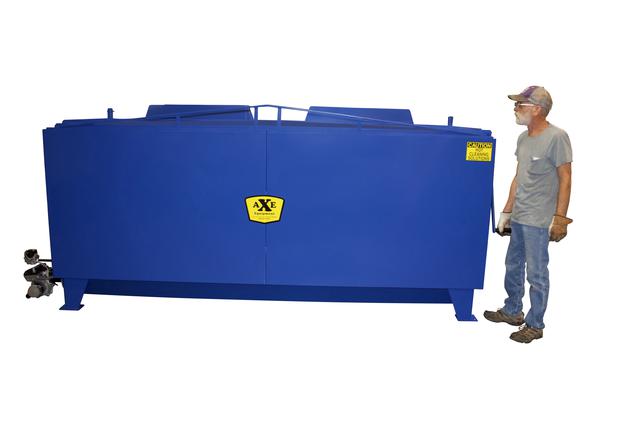

AXE Equipment offers 4 standard models of Agitating Hot Tanks with capacities from 100 gallons to 350 gallons.  AXE Equipment offers custom built Agitating Hot Tanks with capacities of 850 gallons and 1200 gallons.

Optional accessories available for the Agitating Hot Tanks are baskets with lift bars, small parts basket, hand basket, and side mounted hoists.

Models:

AT-10 – I.D. 24”W x 36”L x 20”H (100 gallon capacity)

AT-20 – I.D. 30”W x 48”L x 24”H (200 gallon capacity)

AT-25 – I.D. 30”W x 48”L x 30”H (250 gallon capacity)

AT-35 – I.D. 36”W x 60”L x 30”H (350 gallon capacity)

              (Twin agitating pump design for quick cleaning)

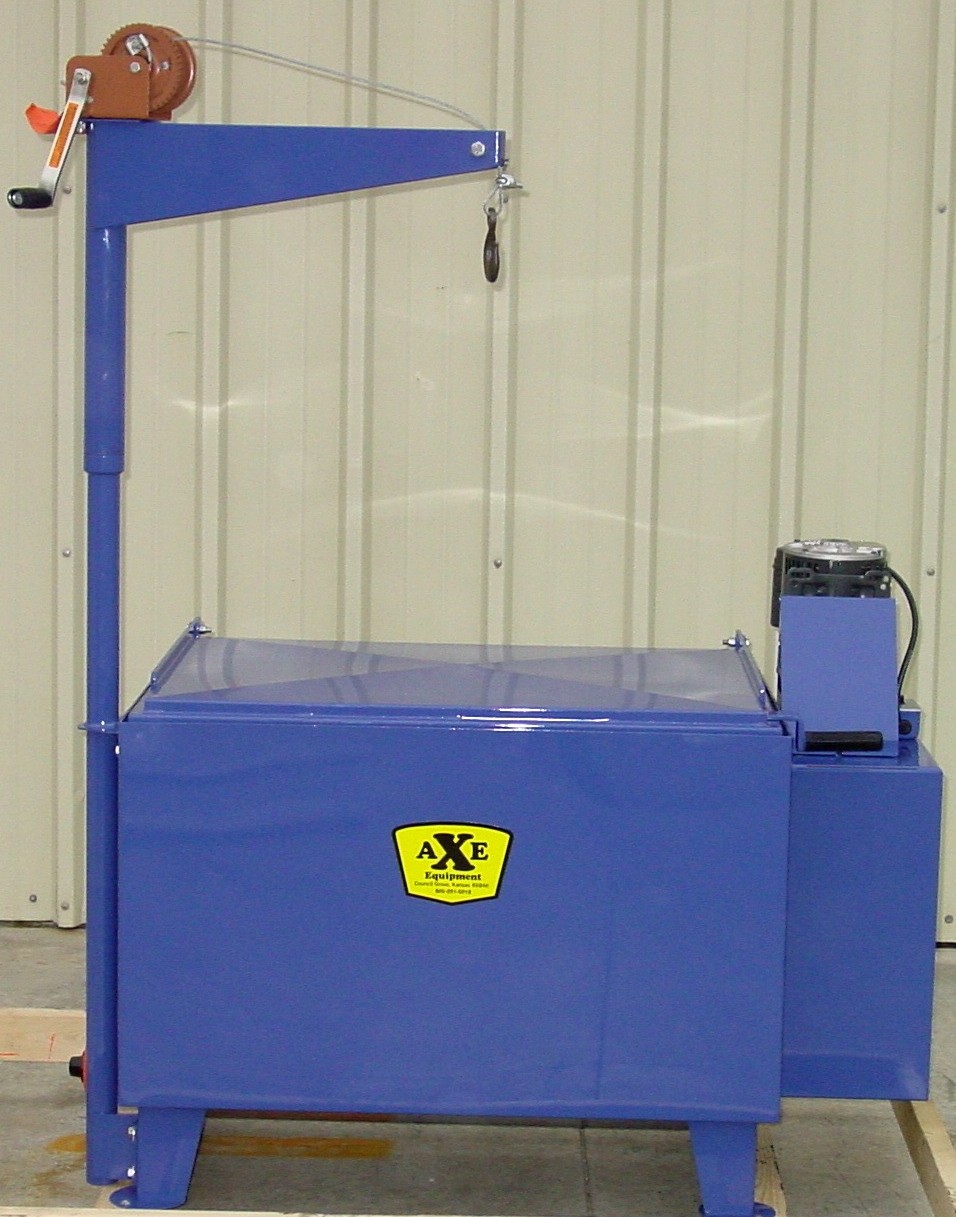

Model AT-10 shown with an optional hoist assembly.

The AT-10 has a 1 block and 2 head capacity and comes standard with a    basket with lift bar.

The models AT-10 (100 gallon capacity) and AT-25 (200 gallon capacity) are excellent for a shop starter or expanding a shop.

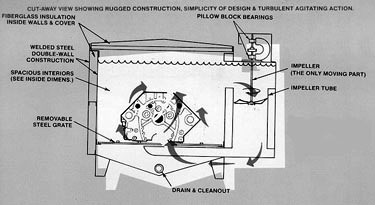

All AXE Agitating Hot Tanks are designed with a V-bottom floor with the grates 8” above the bottom.  This permits ease of clean out, and better yet the grates are the strongest built in their class.  The agitation design permits water to be drawn through the grate and into the pump tank; the heavy duty   impeller attached to the electric motor then pushes the water down and out into the tank causing agitation.

All AXE Agitating Hot Tanks come equipped to handle the toughest jobs where hot tanking is needed.  Agitation is achieved through a design that has proven itself over 25 years to outlast the competition.

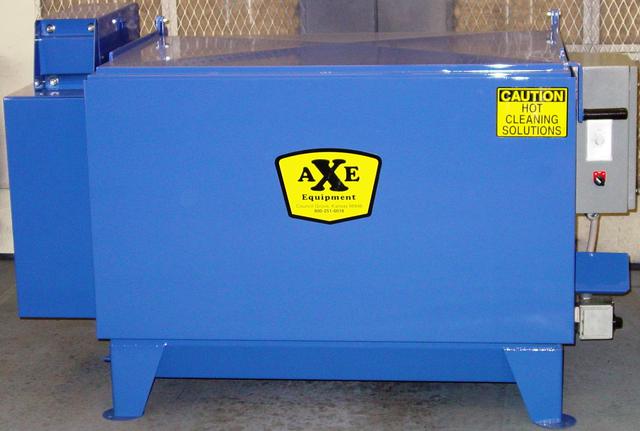

Model AT-25 shown has a 250 gallon capacity.

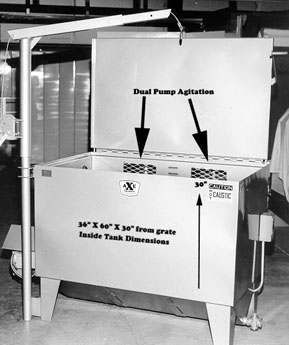

Model AT-35 show with optional boom assembly

(Dual agititating pump intakes inside tank)
