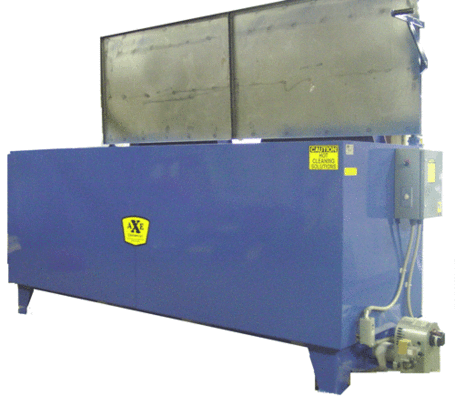

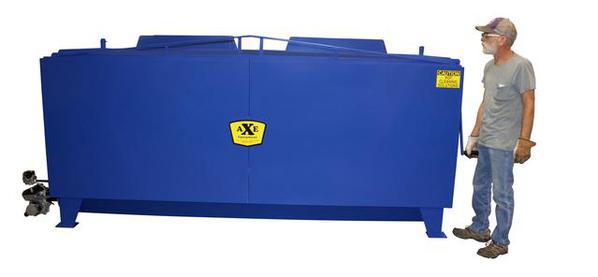

AT-85 Agitating Hot Tank has a huge

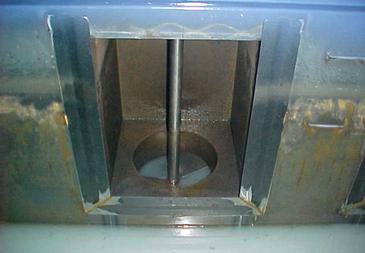

36" x 60" x 30" deep inside tank dimension. Agitation is achieved by water being drawn down through the the grate and into the pump tank; the four heavy duty impellers that are attached to the electric motors then pushes the water down and out of a trough in the bottom, this exclusive design keeps the water agitated for exceptional cleaning results, and like all AXE Equipment Agitating Hot Tanks the AT-85 includes a V-bottom floor for easy clean out.

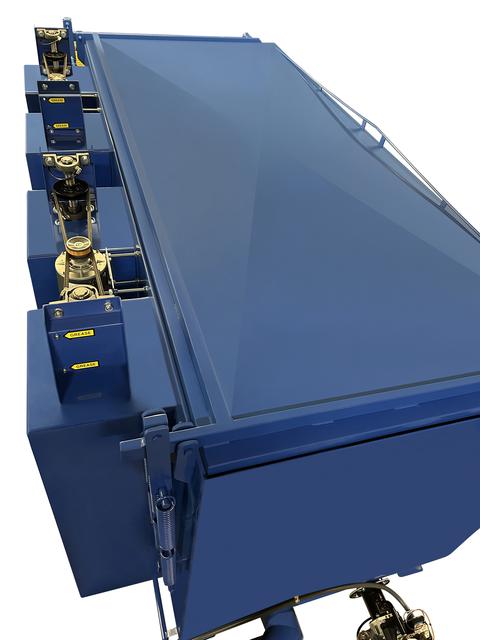

The AT-85 has a large 36" 120" inside tank capacity along with a spring loaded lid for easy loading and unloading. Our exclusive all steel impeller design creates remarkable agitation for remarkable cleaning results. Combine the agitation with high temperatures and you have a great cleaner at an affordable price. Like all AXE Equipment Hot Tanks The AT-85 is completely insulated with thick 2" fiberglass insulation for great heat retention and energy efficiency.

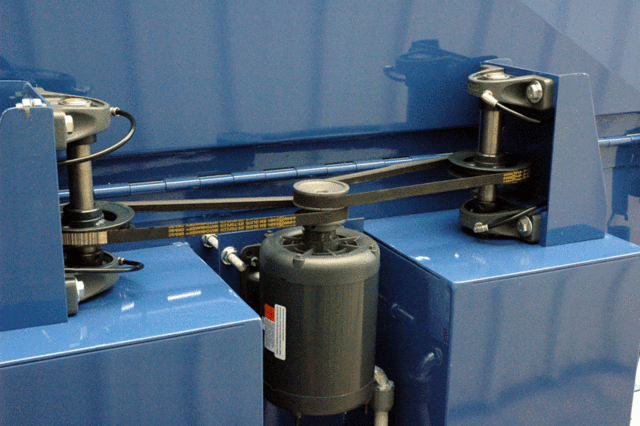

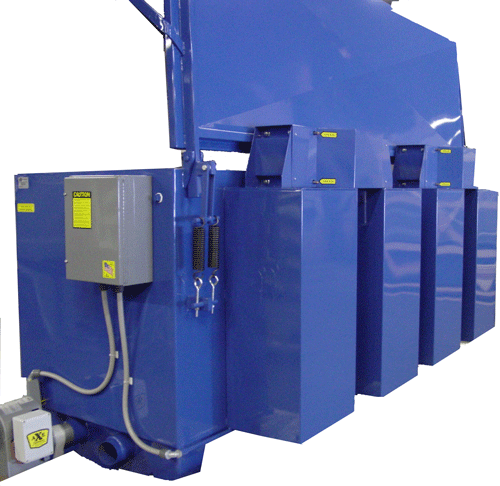

AT-85 agitation is achieved with an all steel belt driven impeller and two commercial grade 2 hp motors Twin heavy duty 1.125" (inch and one eight) pillow block bearings keeps the impeller turning smoothly for long lasting and dependable service.

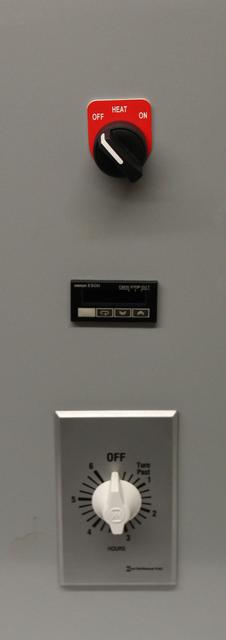

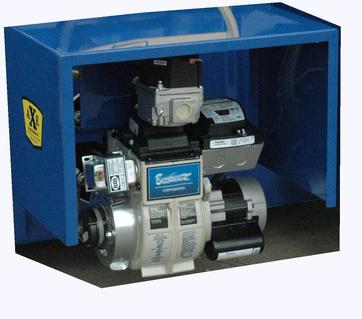

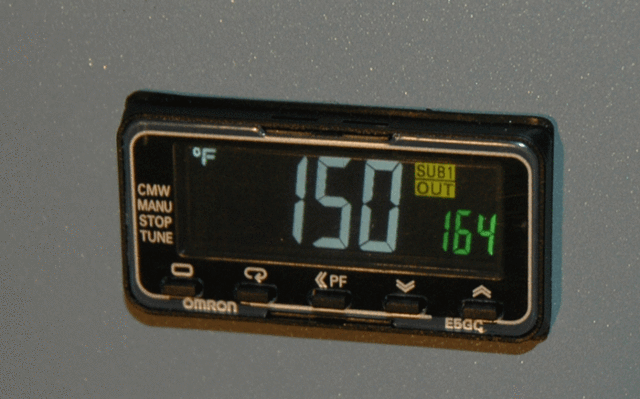

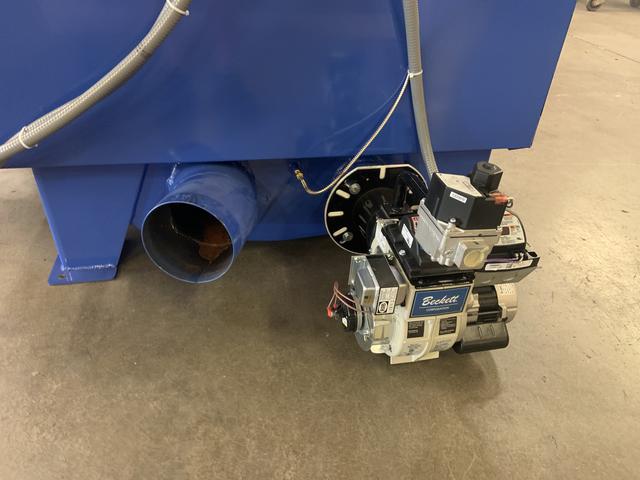

Our thermostatically controlled power gas burner design puts all the components outside the fire box and away from heat. Components last longer, service is easier and maintenance cost reduced, in addition all sensitive electronics are placed inside a Vapor tight box to eliminate any malfunctions due to moisture.

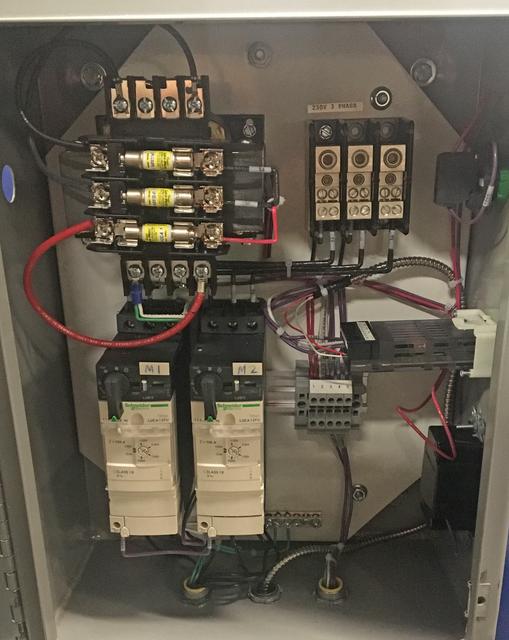

All AXE Agitating Hot Tanks include thermal overloads for motor protection, and circuit breakers for short circuit protection. These bullet proof fully protected electrical systems insure long life for your motors,switches, and heating system .

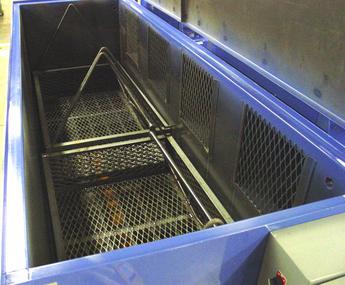

Heavy duty optional baskets with lift bars are available.
#B-28 BASKET: 22" X 28" X 8" DEEP
#B-34 BASKET: 22 X 34" X 8" DEEP
