UP1437 Pressure Tester
The UP1437 delivers rapid set-up time, universal acceptance, and under water submerging capabilities that can even detect pin holes hidden far up into a port. Testing both aluminum and cast iron automotive cylinder heads is quick and easy. Heads can be rotated 360 degrees in and out of the stainless steel submerging tank. The UP1437 insures in-house quality control as well as a profitable money maker.

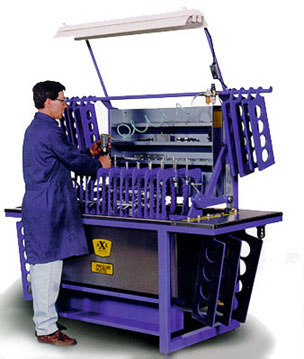

Model UP1437 Universal Pressure Tester

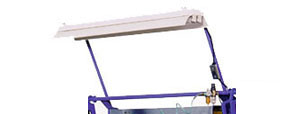

(shown with optional light kit
Dual 48" overhead lights
Standard Equipment :
20 Universal Plates, one set Diesel/Ag Plates
90 Gallon Stainless Steel Submerging Tank
Built In Top Storage Shelf
3/8” air gun, automatic oiler, and air regulator.

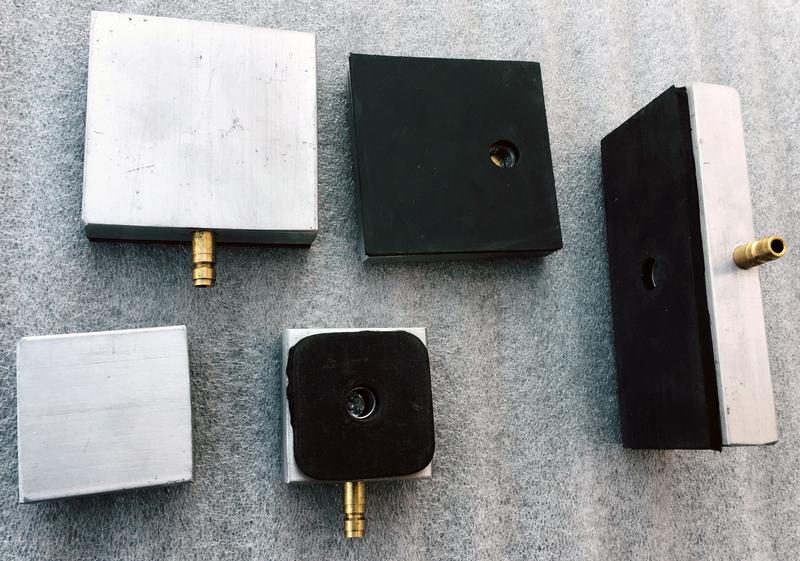

Complete tooling with aluminum block off pads.
System is completely ready for immediate use.
UP1437 Universal Pressure Tester Specifications
Tank Construction…............................…....16 Gauge Stainless Steel
Floor Space Required………….....……....……73”L x 37”W x 67”H
Maximum Head Capacity…….....………......14”W x 37”L
Maximum Lift Capacity……......…………..…650 lbs @ 100 PSI
Air Requirements…………………..…......……80 PSI @ 3 CFM
Shipping Weight………………….....………....1145 lbs
The cradle assembly can be rotated a full 360 degrees both IN and OUT of the stainless steel submerging tank for quickly pinpointing defects anywhere in the casting.
Air control instrument panel is comfortably positioned for finger tip control.

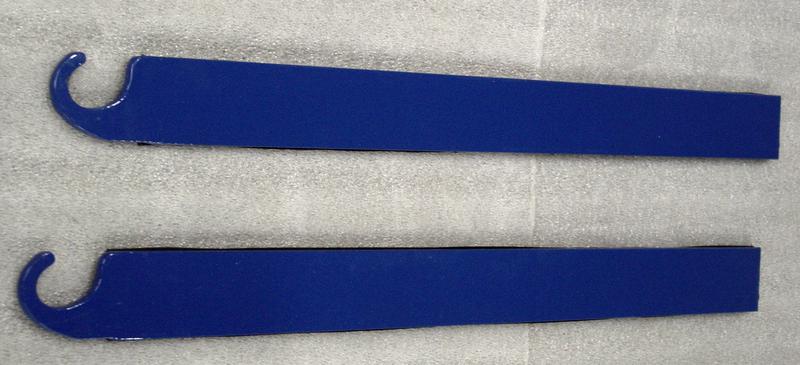

Diesel & Ag Plates
6 Cyl
V-8
V-6
6 Cyl Backside

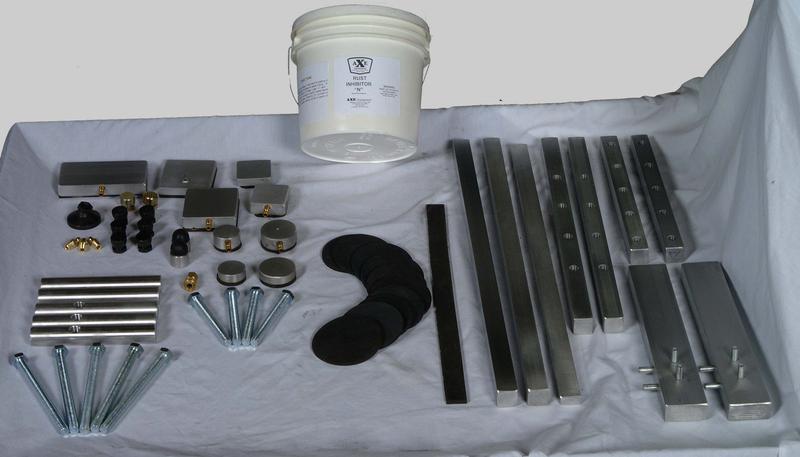

To get you headed in the right direction we include the tooling needed for tackling most any job that comes in the door.
OS220C Filter System-
6gpm self priming air pump, 6 hour timer, dual 20” filters, surface skimmer

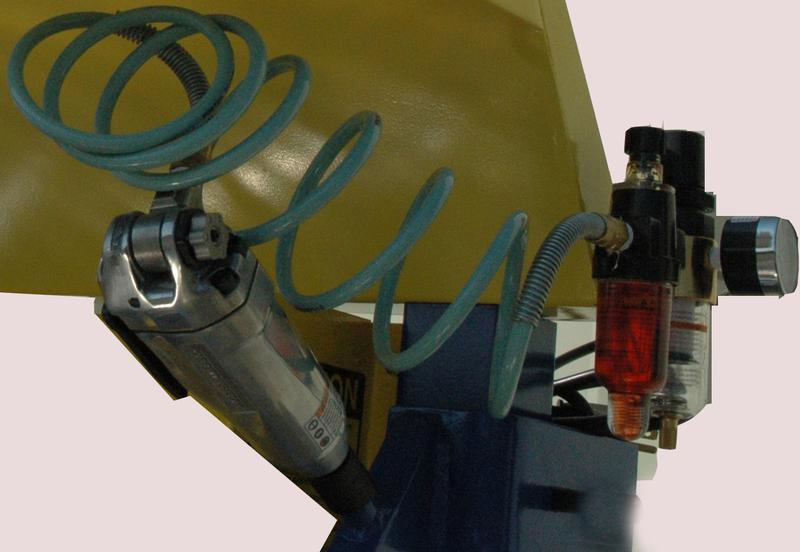

For user efficiency the UP1437 includes built in 3/8" Air Gun for securing the cylinder head inside the clamping device, and automatic oiler and air regulator keeps the system operating smoothly.
Options

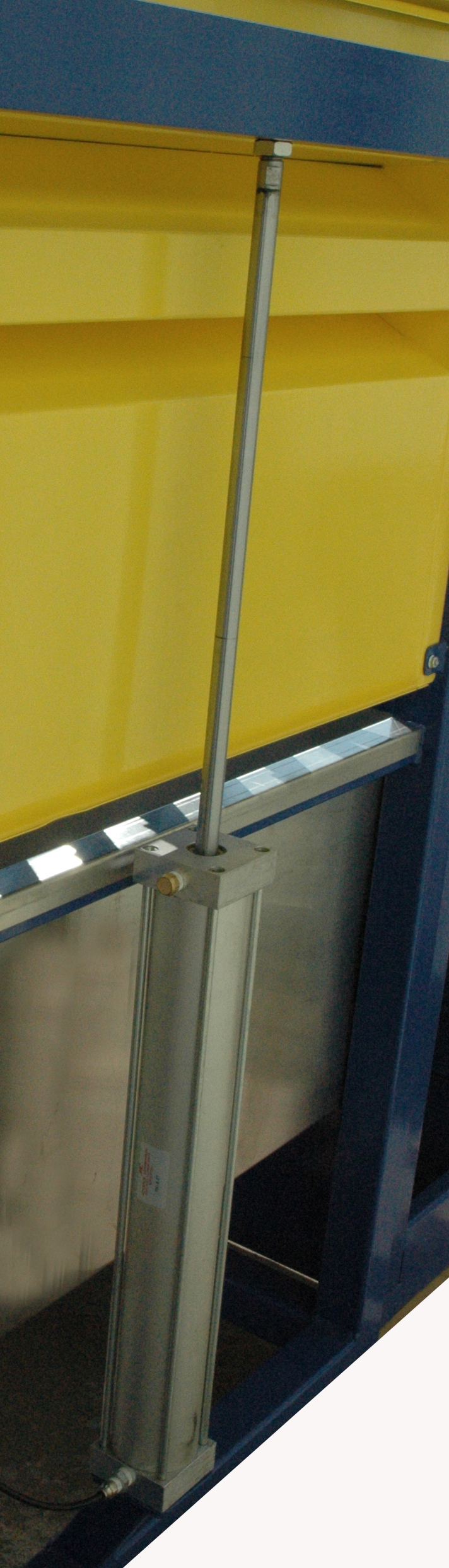

Heavy duty air cylinder lowers and raises the head cradle in the stainless steel submerging tank

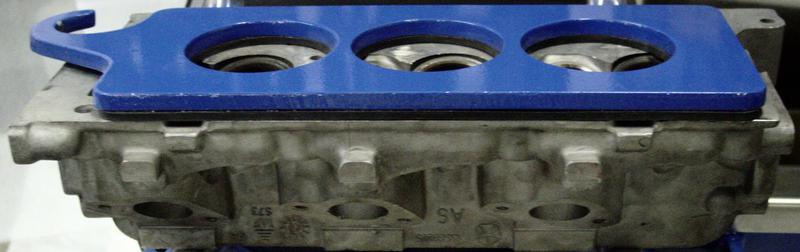

UP1437 model includes 20 Universal Plates and a set of Diesel/Ag Plates. All plates are Lazer Cut, Powder Coated, and backed with a 40 durometer rubber die cut gasket. Included with each Pressure Tester is our Exclusive Plate application chart with over 150 applications. Click image to download plate list
