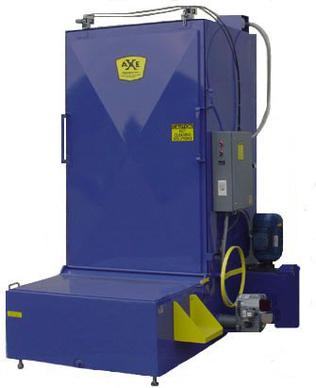

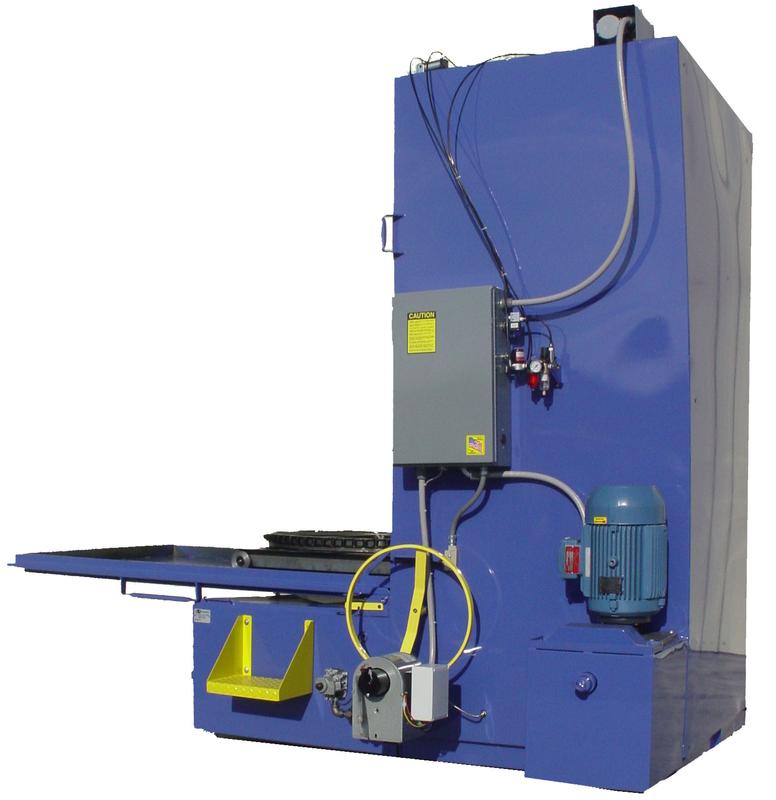

The Intimidator Model is truly intimidating in size and power.
Its large 36”x 60” working capacity and 2000 lb weight capacity will accommodate a host of large truck and industrial applications.  Standard equipment on the Intimidator features pneumatic door clamps, built in hot tank, manual rollout wheel, and a   powerful 15 hp pump motor flowing 225 gallons per minute of hot cleaning solutions for fast and efficient cleaning.

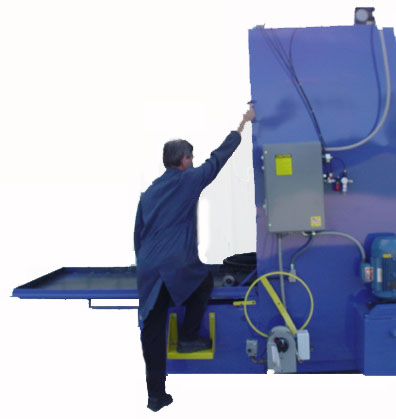

A sturdy footstep and a step assist handle are provided for operator convenience, when loading or unloading, or manual rinsing.

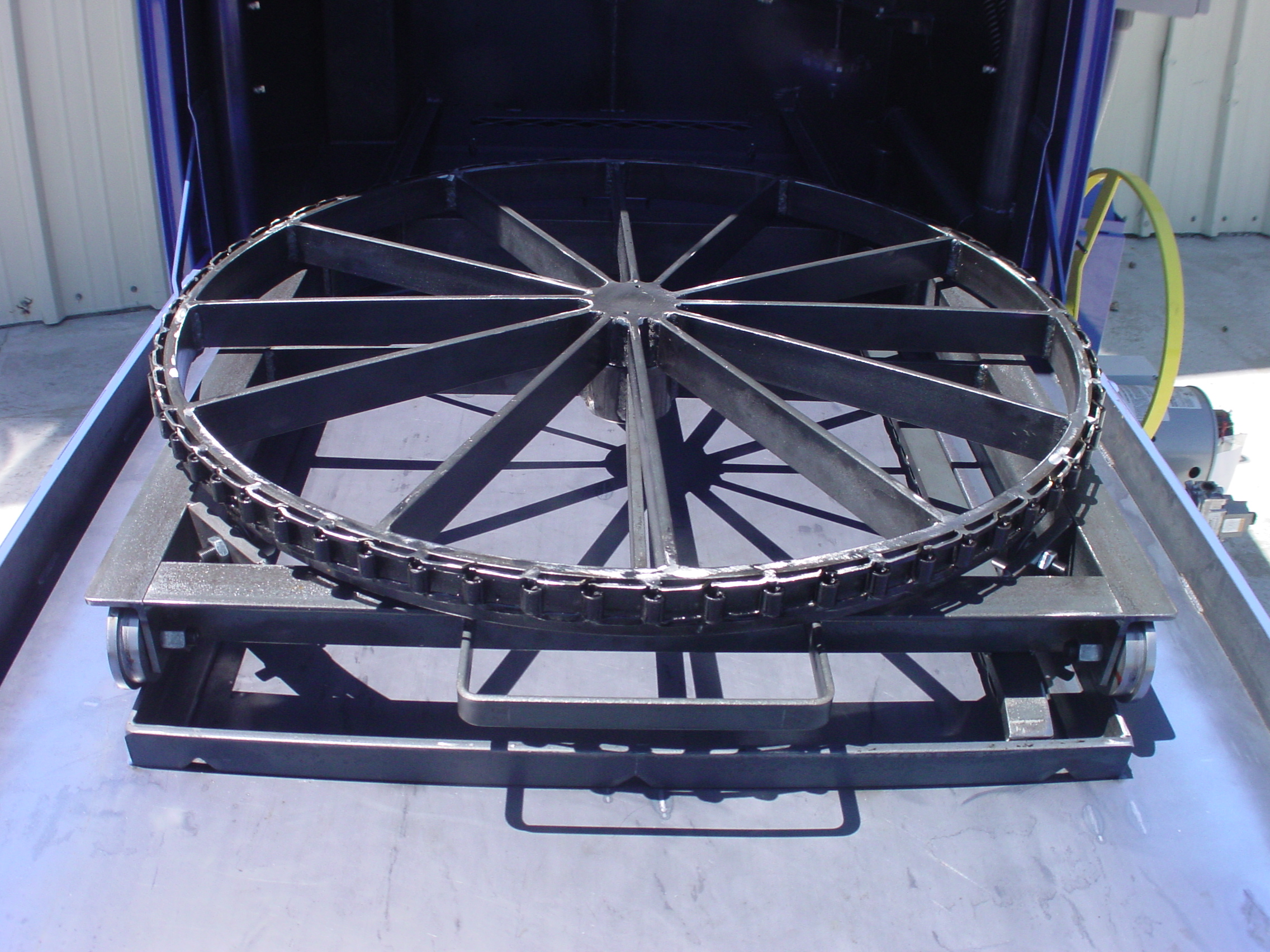

The Intimidators’ 36” diameter turntable can handle a 2000 lb load capacity.  A sturdy center thrust support arrangement works in unison with four outer cam bearings for supporting and equalizing the load.

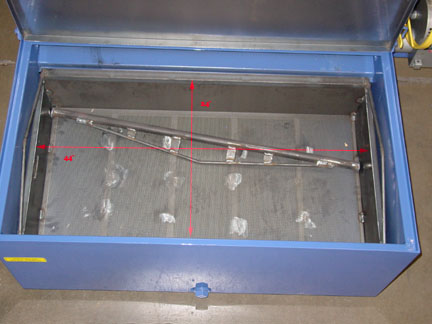

When cleaning in the spray chamber, the powerful 15 HP Pump agitates hot cleaning solutions through the
24” x 44” x 11” built in hot tank.  This feature permits blocks, heads, or small parts to be hot tanked prior to spraywashing at no extra cost.
Gear driven turntable with spring loaded safety clutch guarantees consistent turntable rotation within the spraychamber for a complete cleaning job.

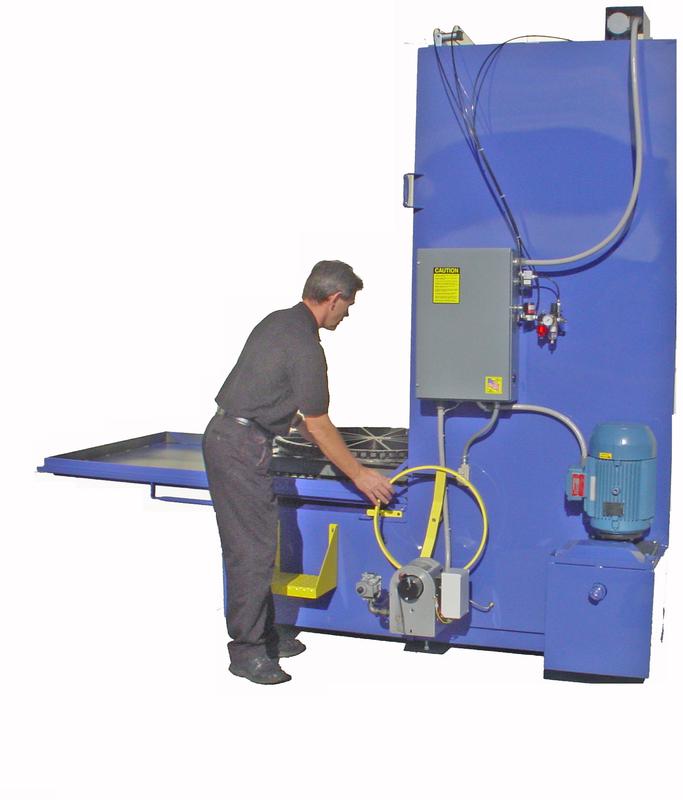

No need to reach into the spray chamber to pull out the work piece. Our handy rollout wheel feature allows you to simply turn the wheel, driving the work piece out of the spray chamber. It is safe, convenient, and fast.

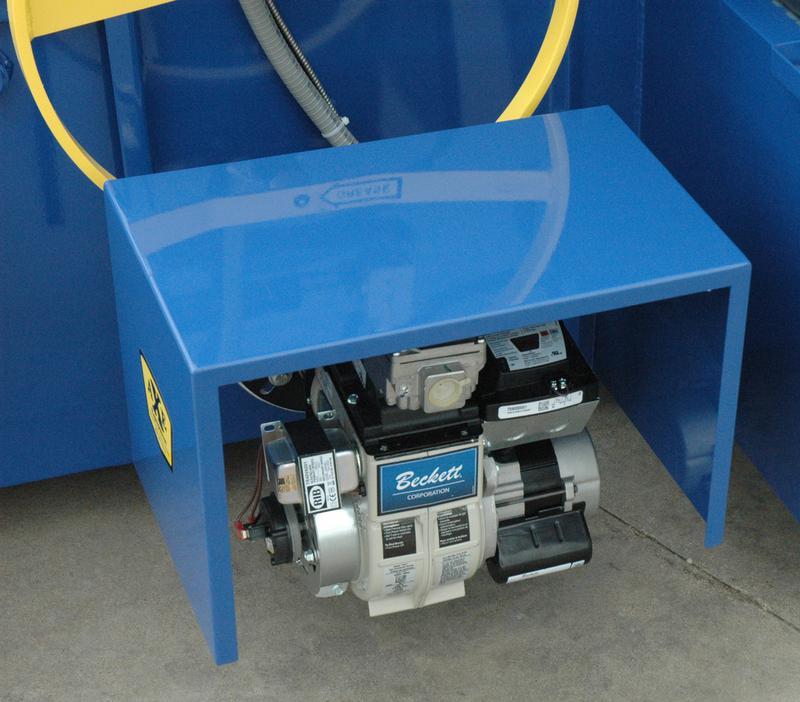

If gas heat is your preference you will like our new exclusive state of the art power gas burners. The control uses flame rectification principles to prove the presence of the burner flame for a safe and reliable startup operation every time
Bullet Proof

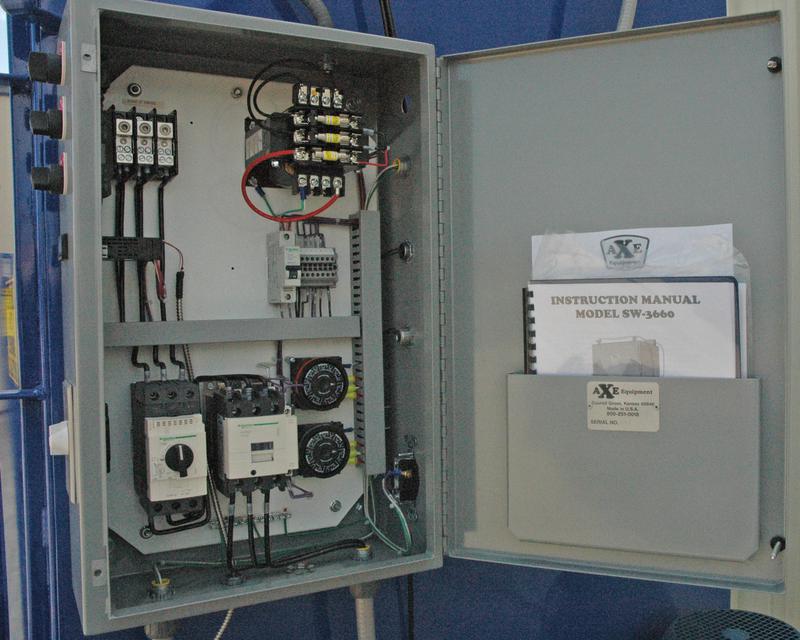

No compromise here when it comes to long lasting electrical controls.
These heavy duty electrical components are designed to protect your pump motors, electric heaters, gas burners, and turntable drive motors from both short circuits and thermal overloads.

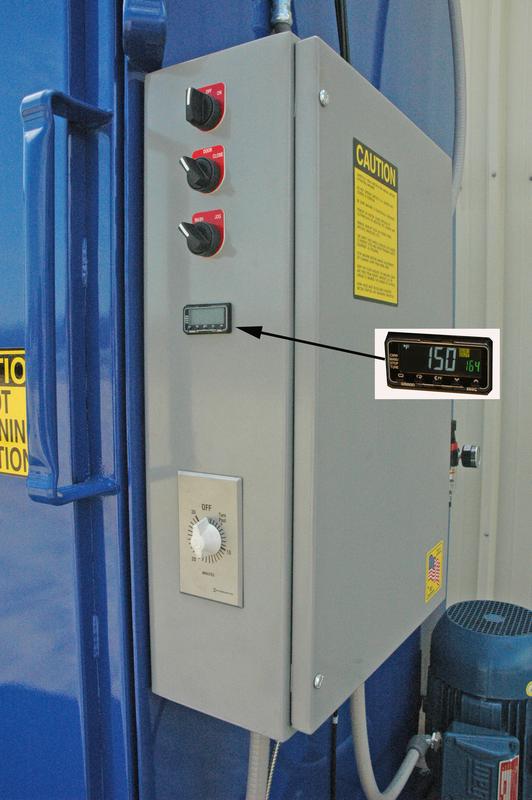

​Heat is very important in the cleaning process and that is why every AXE Equipment washer is outfitted with a digital temperature controller for controlling and monitoring the heat process in the tank.

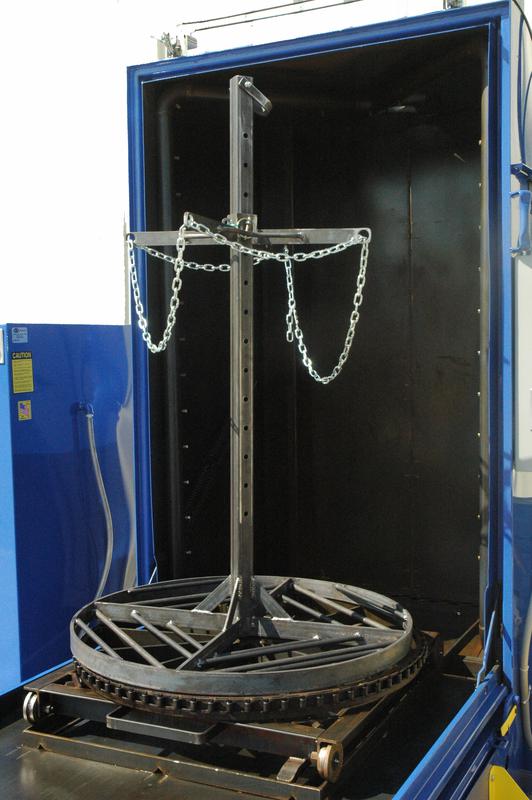

Heavy duty adjustable Head Rack/Crank Rack  comes with all the SW-3660 Intimidator models. Includes a large round base and lifting hook for ease of loading and unloading

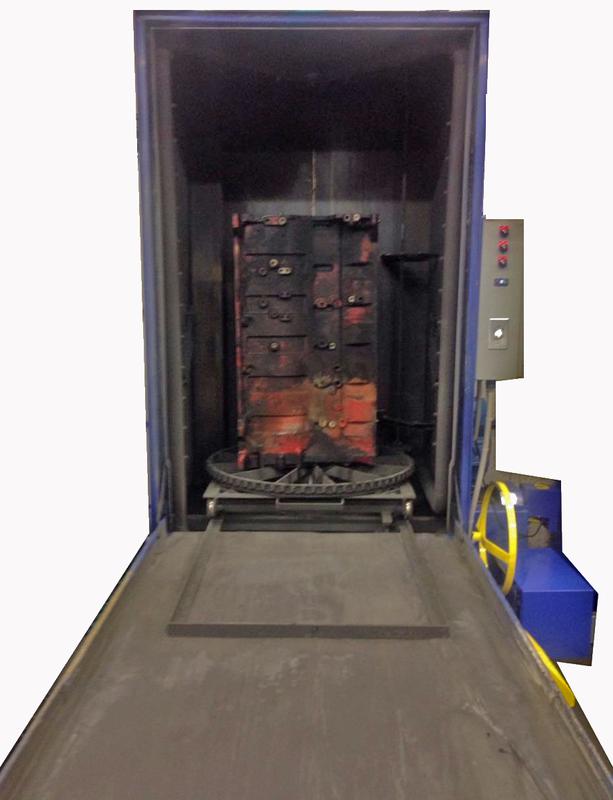

Cummins ISX Block
photos compliments of Capital City Machine, Springfield,IL

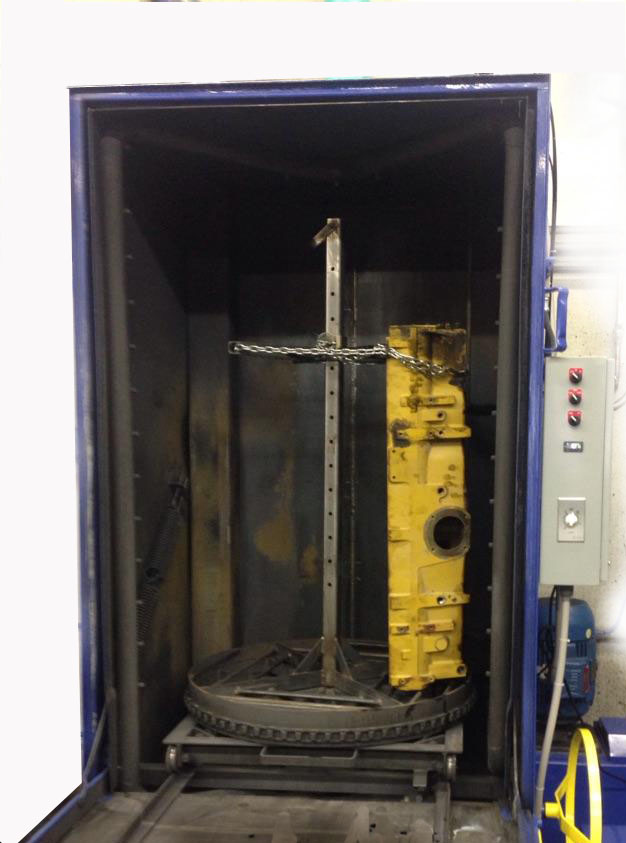

C5 Cat Head
photos compliments of Capital City Machine, Springfield,IL

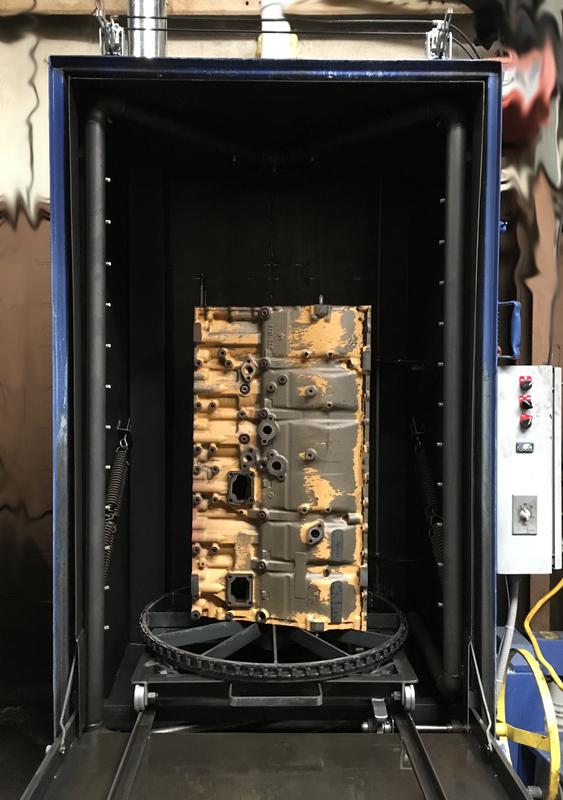

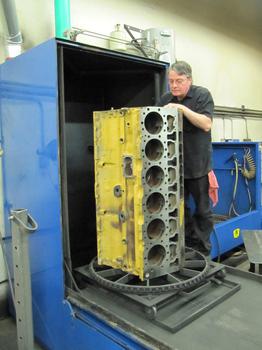

     Cat C34 Block
photos compliments of Capital City Machine, Springfield,IL
Large 27 square foot heavy duty heat exchanger delivers rapid heat up time and rapid heat recovery time. When it comes to gas heat we blow the competition away.

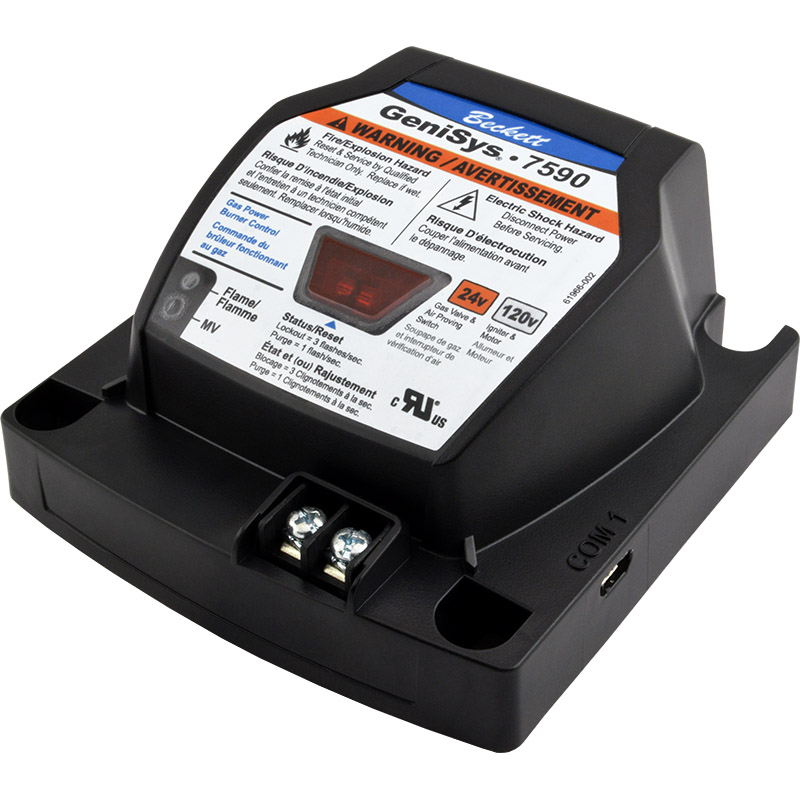

 For the ultimate is safety our new gas burner control uses flame rectification principles to prove the presence of the burner flame, and should you need any service a diagnostic output is provided through 3 LEDs for quick and easy service
