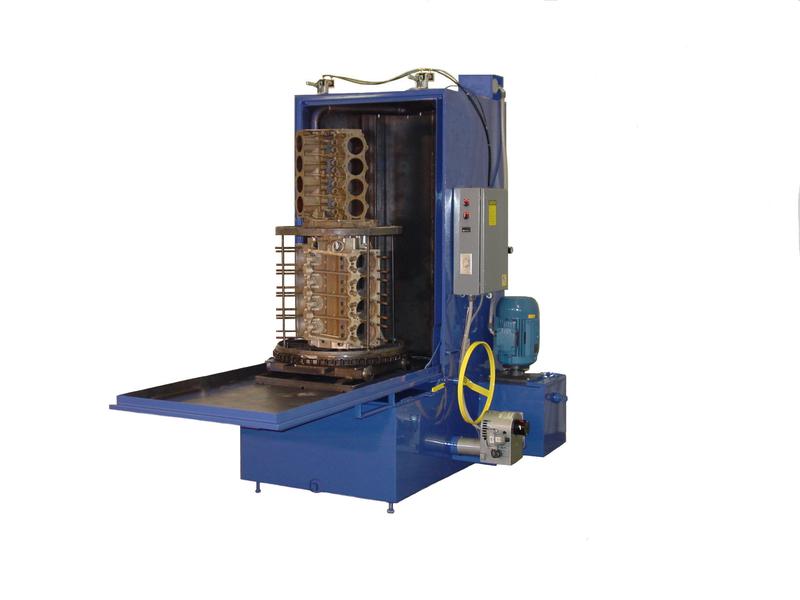

Model	SW-50R	SW-50HT	SW-50EX
Work Capacity
Height	50"	50"	50"
Turntable Diameter	28" Rollout	28" Rollout	28" Rollout
Load Weight	1500 lbs	1500 lbs	1500 lbs
Floor Space Required
Height	93"	93"	93"
Width	57"	57"	73"
Length: Door Open	98"	98"	98"
Length: Door Closed	57"	68"	68"
Turntable Height (above floor)	32"	32"	32"
Cleaning System
Solution Capacity	110 Gallons	130 Gallons	160 Gallons
Pump Motor	10 HP	10 HP	10 HP
Pump Output	80 psi@140 gpm	80 psi@140 gpm	80 psi@140 gpm
Spray Nozzles	24 alternating	24 alternating	24 alternating
Manifold Size	2"	2"	2"
Filter Screen	1200 sq"	1450 sq"	2530 sq"
Turntable Drive	Sprocket Driven	Sprocket Driven	Sprocket Driven
Cabinet Construction
Tank Construction (gauge steel)	12	12	12
Insulation	1" Fiberglass	1" Fiberglass	1" Fiberglass
Steam Vent	6"	6"	6"
Gas Vent	4"	4"	6"
Heat Source
Electric Heat	12 KW	12 KW	15 KW
Gas Burner	100,000 BTU	100,000 BTU	150,000 BTU
Hot Tank Baskets
Dimensions	13"x34"x11"	24"x34"x11"	24"x55"x11"
Electrical Requirements
10 HP Pump Motor 3 Phase	208v 32.2 amps	208v 32.2 amps	208v 32.2 amps
10 HP Pump Motor 3 Phase	230v 28 amps	230v 28 amps	230v 28 amps
10 HP Pump Motor 3 Phase	460v 14 amps	460v 14 amps	460v 14 amps
Electric Heat 3 Phase	208v 33.3 amps	208v 33.3 amps	208v 41.6 amps
Electric Heat 3 Phase	230v 30.1 amps	230v 30.1 amps	230v 37.7 amps
Electric Heat 3 Phase	460v 15.1 amps	460v 15.1 amps	460v 18.8 amps
Gas Burner	120v 1 phase 2.5 amps	120v 1 phase 2.5 amps	120v 1 phase 2.5 amps
Drive Motor	120v 1 phase .60 amps	120v 1 phase .60 amps	120v 1 phase .60 amps
Standard Equipment
Low Water Switch	Yes(electric heat)	Yes(electric heat)	Yes(electric heat)
Dual 7 Day Timers	Yes	Yes	Yes
Digital Temp Controller	Yes	Yes	yes
Head Rack	Yes	Yes	Yes
Turntable Basket	Yes	Yes	Yes
Double Deck Block Rack	Yes	Yes	Yes
Crank Rack/Oil Pan	Yes	Yes	Yes
Manual Rollout Turntable	Yes	Yes	Yes
Auto Air Inducer	Yes	Yes	Yes
Pneumatic Door Clamps	Yes	Yes	Yes
Options
10 HP 208v 3 Phase Pump	208v 32.2 amps	208v 32.2 amps	208v 32.2 amps
10 HP 460v 3 Phase Pump	460v 14 amps	460v 14 amps	460v 14 amps
15 HP Pump 3 Phase	208v 48.3 amps	208v 48.3 amps	208v 48.3 amps
15 HP Pump 3 Phase	230v 42 amps	230v 42 amps	230v 42 amps
15 HP Pump 3 Phase	460v 21 amps	460v 21 amps	460v 21 amps
Hand Basket	12"x12"x8"	12"x12"x8"	12"x12"x8"
Parts Basket with Lid	12"x12"x5"	12"x12"x5"	12"x12"x5"
Parts Basket with Lid	10"x10"x4"	10"x10"x4"	10"x10"x4"
Oil Skimmer
Boom/Crane Assy with Trolley
Gas Burner Cover
Amperage Saver(Electric Only)
Rinse Cycle (Factory Installed)
Shipping Weight	1900 lbs	2100 lbs	2300 lbs
