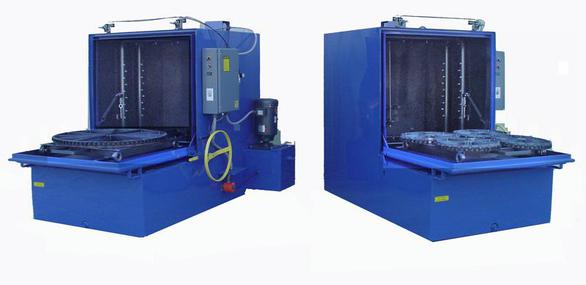

Model |
SW4-2032 |
SW4032 |
Work Capacity |
Height |
32" |
32" |
Turntable Diameter |
20" Rollout qty 4 |
40" Rollout qty 1 |
Load Weight |
500 lbs (each turntable) |
2000 lbs |
Floor Space Required |
Height |
74" |
74" |
Width |
69" |
69" |
Length: Door Open |
103" |
103" |
Length: Door Closed |
84" |
84" |
Loading Height |
34" |
34" |
Cleaning System |
Solution Capacity |
225 Gallons |
225 Gallons |
Pump Motor |
15 HP |
15 HP |
Pump Output |
80 psi@280 gpm |
80 psi@280 gpm |
Spray Nozzles |
56 alternating |
56 alternating |
Manifold Size |
2" |
2" |
Filter Screen |
3000 sq" |
3000 sq" |
Turntable Drive |
Sprocket Driven |
Sprocket Driven |
Cabinet Construction |
Tank Construction (gauge steel) |
12 Inner/16 Outer |
12 Inner/16 Outer |
Steam Vent |
6" |
6" |
Gas Vent |
6" |
6" |
Insulation |
1" Fiberglass |
1" Fiberglass |
Heat Source |
Electric Heat |
21.5 KW |
21.5 KW |
Gas Burner |
225,000 BTU |
225,000 BTU |
Hot Tank Baskets |
Inside Dimensions |
24"x47"x11" |
24"x47"x11" |
Electrical Requirements |
15 HP Pump Motor 3 Phase |
208v 48.3 amps |
208v 48.3 amps |
15 HP Pump Motor 3 Phase |
230v 42 amps |
230v 42 amps |
15 HP Pump Motor 3 Phase |
460v 21 amps |
460v 21 amps |
Electric Heat 3 Phase |
208v 59.7 amps |
208v 59.7 amps |
Electric Heat 3 Phase |
230v 54 amps |
230v 54 amps |
Electric Heat 3 Phase |
460v 27 amps |
460v 27 amps |
Gas Burner |
120v 1 Phase 2.5 amps |
120v 1 phase 2.5 amps |
Drive Motor |
120v 1 phase .60 amps |
120v 1 phase .60 amps |
Standard Equipment |
Low Water Switch |
Yes(electric heat) |
Yes(electric heat) |
Dual 7 Day Timers |
Yes |
Yes |
Digital Temp Controller |
Yes |
Yes |
4) 20" Diameter Turntables |
Yes |
No |
40" Diameter Turntable |
No |
Yes |
Hot Tank Basket and Lift Bar |
Yes |
Yes |
Auto Air Inducer |
Yes |
Yes |
Adjustable Head Rack |
Yes |
No |
Head Rack/Crank Rack |
No |
Yes |
Pneumatic Door Clamps |
Yes |
Yes |
Mechanical Rollout Turntable |
Yes |
Yes |
Options |
460 Volt Heater |
460v= 27 amps |
460v= 27 amps |
Turntable Basket |
28" |
28" |
Hand Basket |
12"x12"x8" |
12"x12"x8" |
Parts Basket with Lid |
12"x12"x5" |
12"x12"x5" |
Parts Basket with Lid |
10"x10"x4" |
10"x10"x4" |
Oil Skimmer |
Boom/Crane Assy with Trolley |
Gas Burner Cover |
Shipping Weight |
3000 lbs |
3035 lbs |
Specifications subject to changed without notice.
