Oil Skimmers
Copyright © 2011 “AXE Equipment”. All rights reserved.

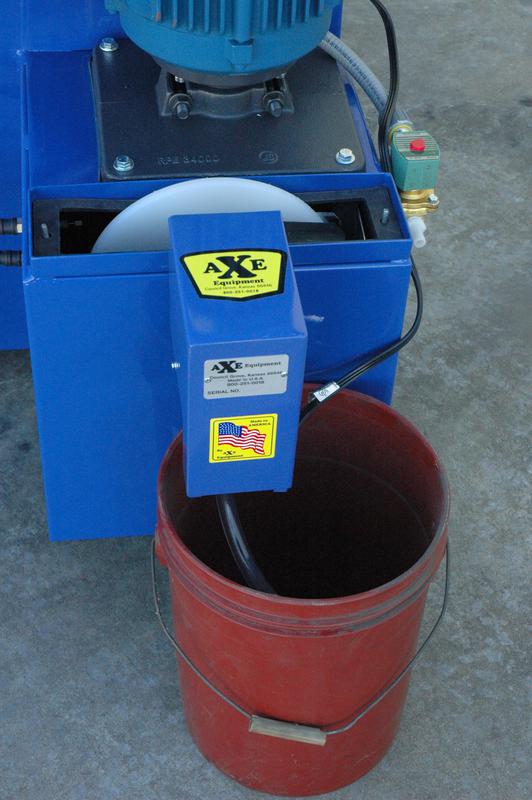

Model OS111 Built in Oil Skimmer
With an AXE OS111 built-in Oil Skimmer, you can automatically remove oils and with its hideaway design, heat loss is greatly reduced.
All AXE Spraywashers are built with this feature for later installation.
•
Completely enclosed with removable cover
Completely enclosed with removable cover for easy cleaning and minimal heat loss
•Removes up to 2 quarts per hour
Removes up to 2 quarts per hour•11” High Temperature, High Density, Polyethylene Disk
11” High Temperature, High Density, Polyethylene Disk•Stainless Steel Wiper Blades
Stainless Steel Wiper Blades (permits wiping from both sides)
•Replaceable disk and blades
Replaceable disk and blades•110 volt Drive Motor (with low power consumption)
110 volt Drive Motor (with low power consumption)•Steel Frame Construction
Steel Frame Construction3 Models Available

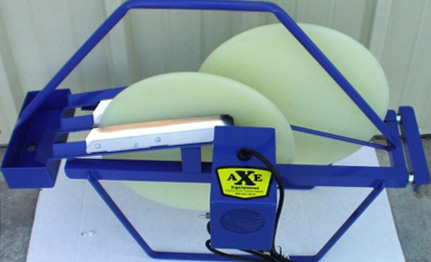

Model OS216 Oil Skimmer
The AXE Equipment OS216 Oil Skimmer displays a compact design and rugged construction to ensure long lasting dependability.
It is portable and adjustable to fit inside your hot tank.
•Portable & Adjustable
Portable & Adjustable•Skims 1 gallon per hour
Skims 1 gallon per hour•Fast easy mounting
Fast easy mounting•Dual action 16” oil disk
Dual action 16” oil disk•4 Wiper blade operation
4 Wiper blade operation•Replaceable disk and blades
Replaceable disk and blades•Corrosive resistant/high temperature polyethylene oil disk and wiper blades
Corrosive resistant/high temperature polyethylene oil disk and wiper blades•Built in storage stand and carrying handle
Built in storage stand and carrying handle•Fully welded construction
Fully welded construction•115 volt enclosed gear motor (.77 amps)
115 volt enclosed gear motor (.77 amps)•Easy Discharge
Easy Discharge•Overall dimensions: 34” x 17” x 25”
Overall dimensions: 34” x 17” x 25”•Shipping Weight: 70 lbs
Shipping Weight: 70 lbsModel OS-220C Skimmer/Filtering System
The only effective way to remove surface scum from your pressure testing solution!!
It is no surprise that submerging your cylinder heads under water is the most effective means for detecting cracks, or pin holes in automotive cylinder heads, and that is why thousands of engine rebuilders have chosen the AXE Universal Submerging Pressure Tester. AXE Equipment has a solution that will solve your dirty tank solution while having the reliability of the submerging process.
•Maintenance Free Surface Skimmer
Maintenance Free Surface Skimmer•Easy Installation
Easy Installation•6 Hour Timer
6 Hour Timer•Self-Priming Air Pump

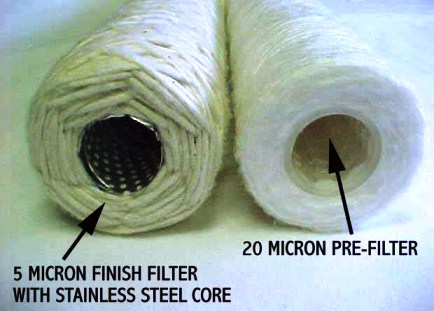

Self-Priming Air Pump•Two Stage Filtering
Two Stage Filtering •Fits all AXE Universal Pressure Testers
Fits all AXE Universal Pressure Testers
This Skimmer can be added anytime to your
AXE Universal Pressure Tester.
