Filtration Systems

Copyright © 2011 “AXE Equipment”. All rights reserved.

The AXE Filtration Systems are Closed Looped Systems Engineered to give you control on reducing, recycling, and reusing hazardous waste found in Spraywashers, Hot Tanks, Honing Machines, Grinders, Solvent Tanks, and other liquids found in today’s rebuilding application.

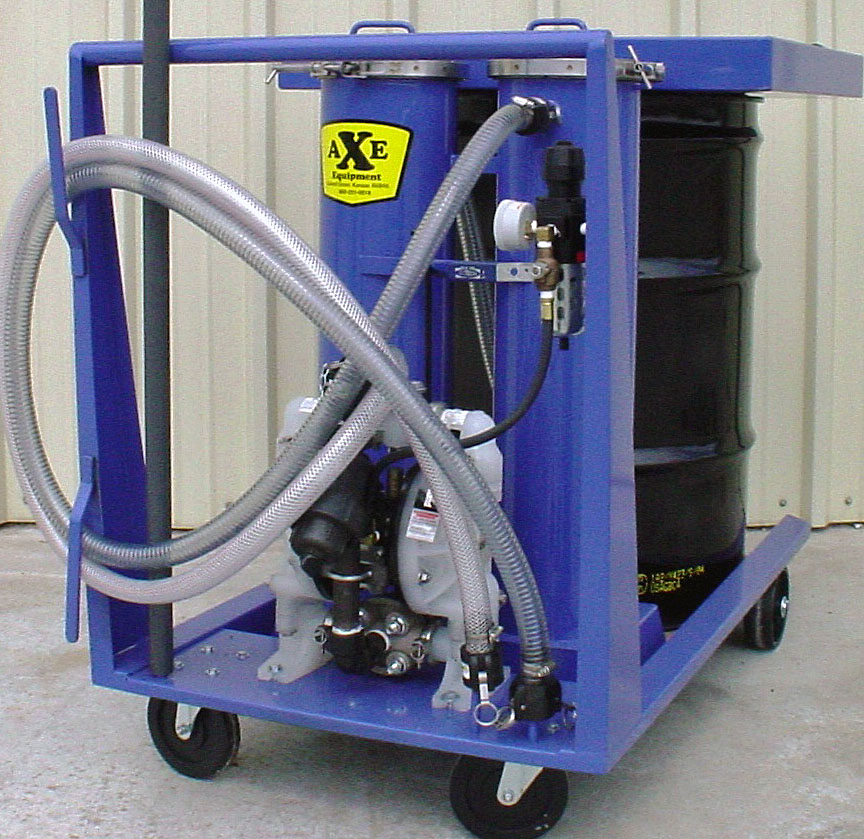

VF-28 Filtration System Shown

•Increases stone life

•Protects from plugged nozzles in spraywashers, giving you          effective and precise spray patterns, pressures, and flows

•Eliminates the need to manually  remove sludge’s

•Conserves water and energy

•Extends the life and efficiency of chemicals and coolants

•Reduces the volume of hazardous waste

•Increases  the life and efficiency of heating elements

•Increases the life and efficiency of gas burner tubes

Standard Equipment Includes:

8” Diameter x 36” Filter Vessel(s) with Stainless Steel Strainer Basket(s)

44 GPM Cast Iron, Nickel Coated, Self Priming, Air Operated Diaphragm Pump

D.O.T. Drum with Labels

Barrel Mounted Work Table

8’ Suction Hose with Quick Coupler Attached

7.75’ Return Hose with Quick Coupler Attached

Return Side Diffuser with Quick Coupler Attached

Adjustable Vacuum Wand with Quick Coupler Attached

29” x 50” Portable Cart

VF-45 Sludge Shovel and Hoe

1 Pair Rubber Gloves

1 Air Regulator

Filter Bag Assortment (depending on the model ordered)

Optional….VF-5 Quick Coupler Kit (allows you to set your present cleaner(s) up for a cleaner, faster hookup time.

2 Models Available

The VF-18 Series uses a single stage filter.  The user simple removes the old bag from the vessel and inserts a new one.  Both systems utilize a barrel mounted work table the makes removing bags clean and easy.  9 Filter Bags included.

The VF-28 Series puts waste in its place uses a two stage design that gives you greater holding capacities eliminating the need to change filters as often.  14 assorted filter bags included.

A Complete Closed Loop System from AXE Equipment allows for powerful cleaning, thorough rinsing, and high performance filtering in an environmentally sound process.

System Includes:  Spraywasher, Oil Skimmer, Water Recycling Rinse Booth,

and a VF Series Filtration System.
