THE DOMINATOR IS FOR THE SERIOUS MINDED.

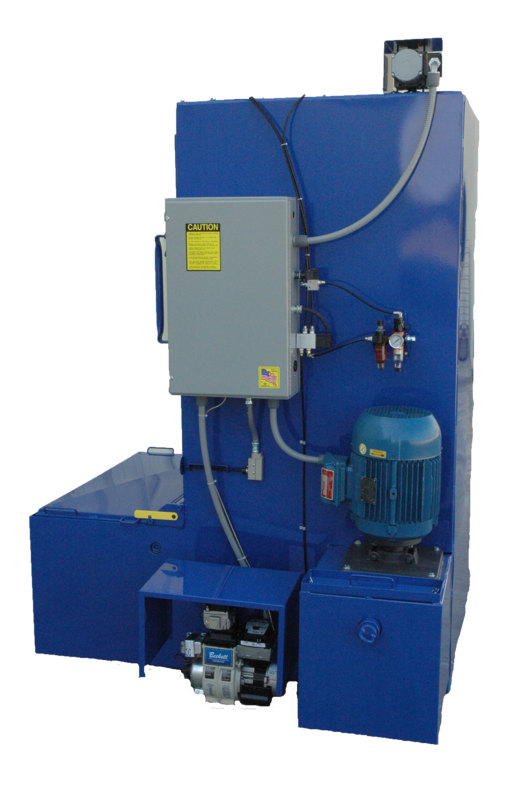

In 1984 AXE Equipment built its first Spraywasher Cabinet, The SW-40 Dominator. The critics all claimed the lay down door with a roll out turntable couldn't be done. Thirty plus years later here we are with the most productive line of Spraywashers in the Industry. Our rough and rugged Dominator model comes with a wide 28" diameter turntable that holds up to 1000 pounds and has a full 40" vertical height inside clearance.  The spring assisted lay down door on the  dominator can handle the tough loads such as the big detriot series blocks. This fully insulated cabinet is powered by a 7.5 hp motor and can be heated by gas or electric. 3 different hot tank sizes are available.
3 DIFFERENT HOT TANK SIZES AVAILABLE

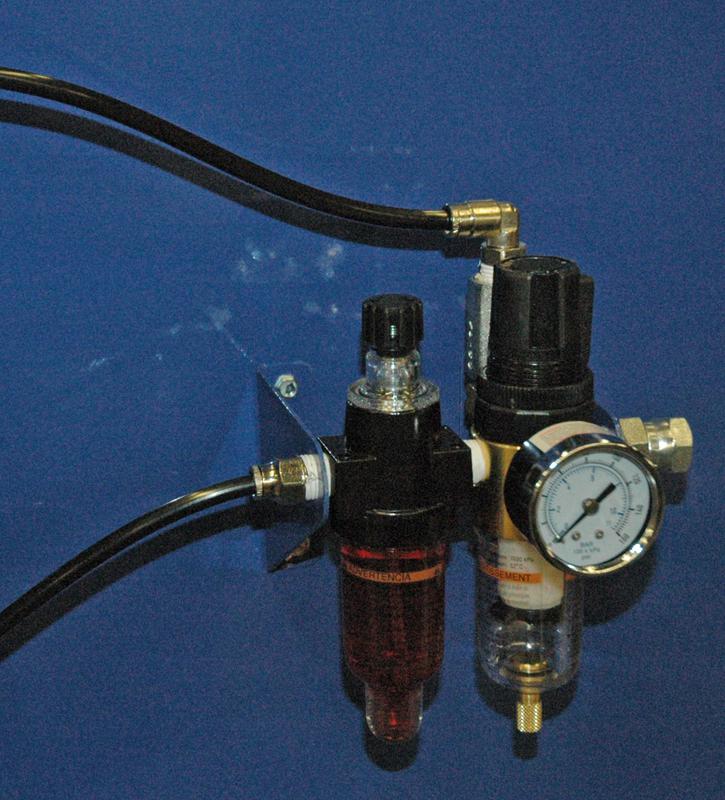

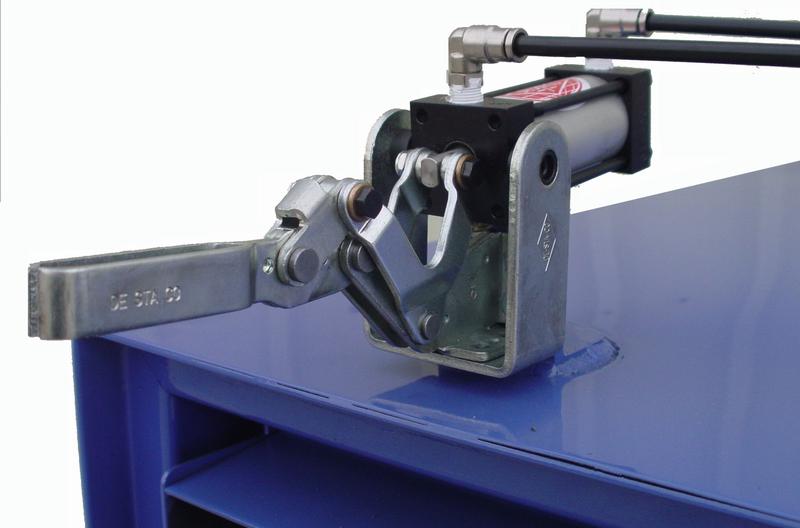

The pneumatic door clamps allow for smooth, safe, and hassle  free door operations while the automatic oiler and built in air regulator keeps the clamps working smoothly.

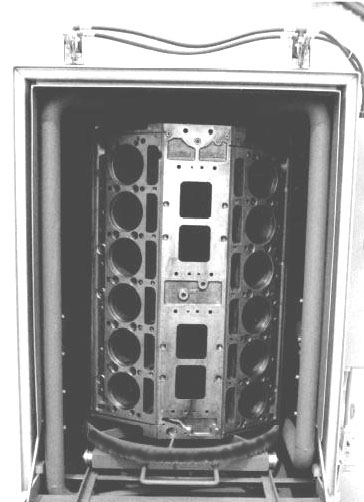

The Domintor has a full 40" vertical capacity with a 1000 pound weight capacity. Shown with V-12 Detroit
Includes Built in Hot Tanks
     SW-40HT
24" x 34" x 11"
     SW-40R
13" x 34" x 11"

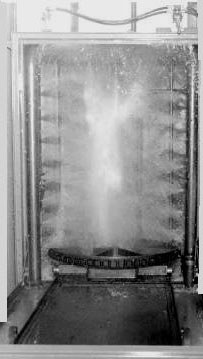

Full 360 degree manifold is constructed from 2" tubing and designed with radius elbows for high performance water flow. The powerful 7.5 hp pump pushes 100 gallon per minute of hot water through 20 perfectly placed nozzles for fast and efficient cleaning

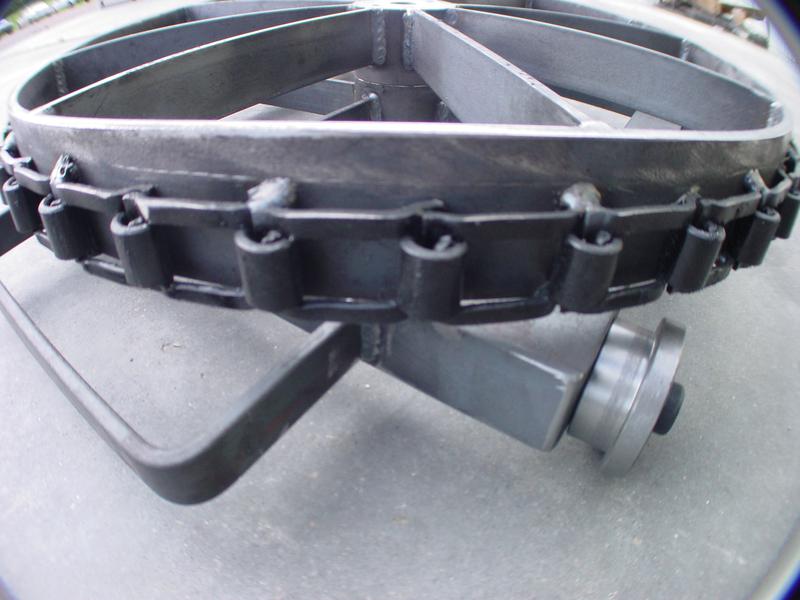

Gear driven turntable with spring loaded safety clutch guarantees consistent turntable rotation within the spraychamber for a complete cleaning job.
The SW-40 Light is an entry level machine that has all the same features and cleaning power as the Standard SW-40 models except it is without insulation and without pneaumatic door clamp system

The 40 Light model can be purchased with 3 separate sizes of built in hot tanks.

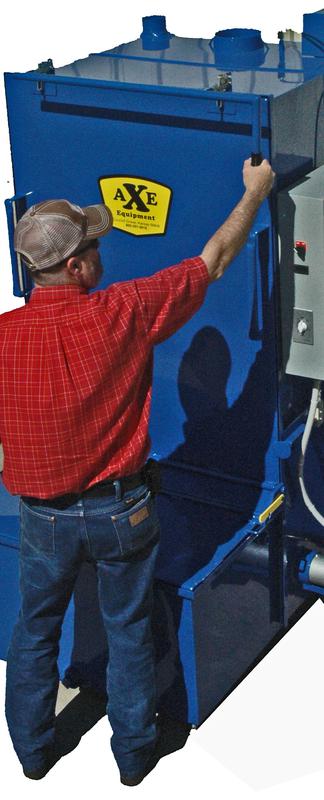

SW-40 Light with Mechanical door Latch.

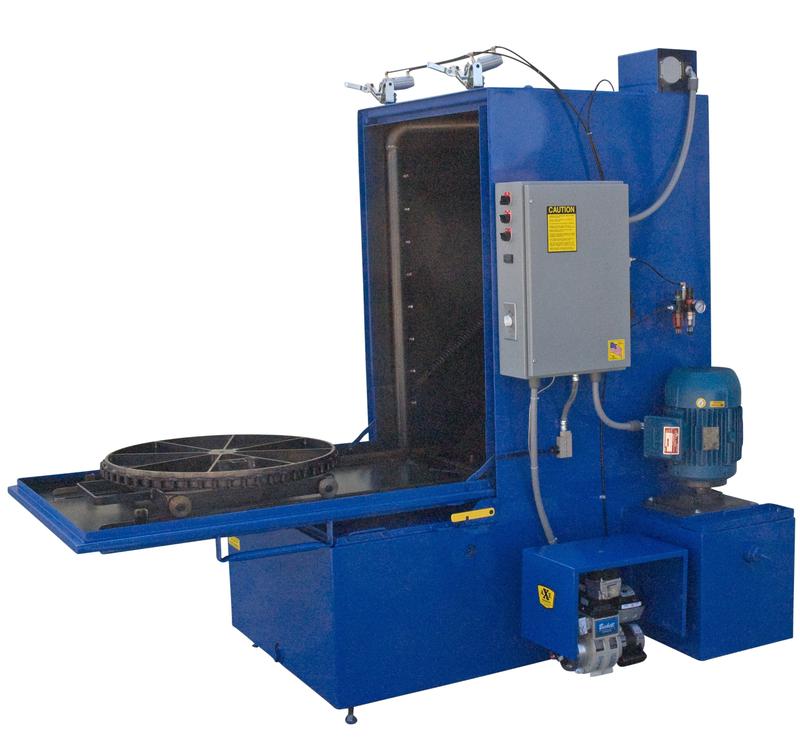

The Dominator like all AXE Sprayashers incorporates and spring loaded Lay down Door that makes loading and unloading a snap, and keeps the shop floor much cleaner and drier.
Easy Load, Easy Unload
SW-40 Light with Mechanical door Latch.

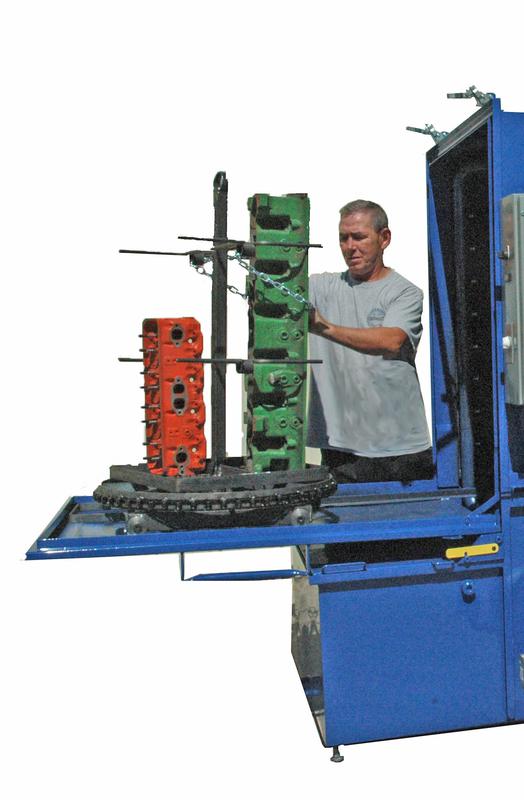

Standard Equipment includes a heavy duty head rack with a 100% rollout turntables for ease of loading and unloading parts

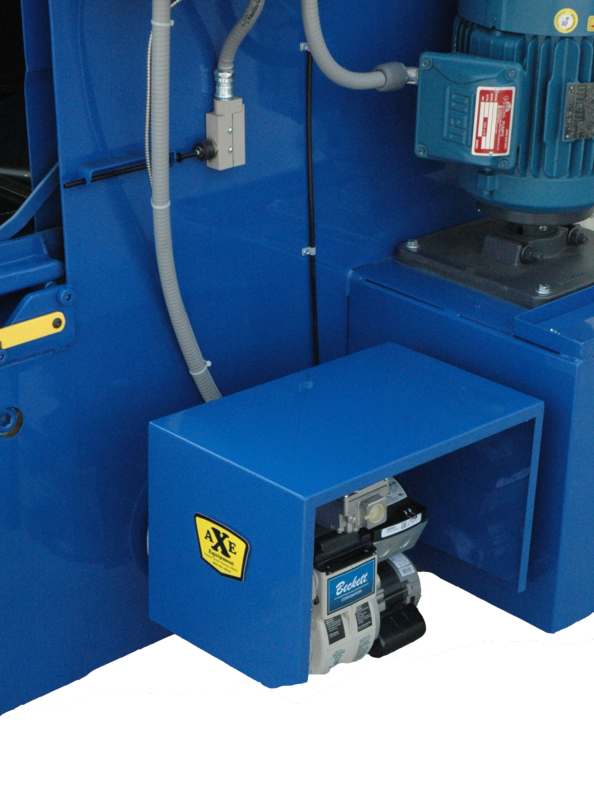

All  AXE gas heated machines use a state of the art forced draft burner with electronic spark. Our oversize heat exchanger allow for fast heat up and fast heat recovery times.
